portable digital weighing scale

FOB Reference Price:Get Latest Price
$6,500.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Truck Scale
Rated Load:
80ton
Accuracy:
20 kg
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
ZONJLI or OEM
Model Number:
SCS-80D-QHJ(3015)
Power Supply:
AC 220V / 50Hz
Display Type:
LED
Size:
3*15m
Safe overload:
150%
Load cell:
High accuracy digital load cell
Junction boxes/Terminal boxes:
Stainless waterproof
Weighing indicator:
DZ2008-1EP
Structure:
U beam girders
Division:
20kg
OEM:
We OEM truck scale for Germany Sartorius
Manufacture Equipment:
With advanced manufacture equipment
Leader of weighing scale:
With 19years manufature experience
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The body of truck scale is in plastic protected package and the accessories part are packed in wooden case
Port
Shanghai
Video Description
Product Description

Heavy duty portable digital weighing scale

SCS/ZCS full electronic module truck scale adopts advanced electronic weighing technology and reasonable structure design, the quality is stable and reliable, Hence vast numbers of customers trust and approve our products.
Truck scale system equips with high precision load cell and intelligent weighing display indicator, indicator has high sensitivity, high resolution and rich software function. Besides its works is stability and reliability. The printer prints weighing data via indicator standard output interface. Truck Scale system also can connects with computer to consist weighing management system. The whole truck scale system weighing rapidly and accurately, work is stable and reliable, convenient in operation, maintenance is simple. Truck scales are widely used in metallurgy, mining, machinery, chemical, port and all kinds of truck weighing measurement, which is the international advanced measuring equipment.

SPECIFICATIONS FOR WEIGHING SCALE
Model No.:
SCS-80D-QH2J(3018)

SCS-100D-QH2J(3018)

SCS-120D-QH2J(3018)
Max.Weighing Capacity (t)
80t
100t
120t
Size (m)
3x18m
3x18m
3x18m
Division value (kg)
20kg
20kg
20kg
Axle loading (t)
35t
40t
40t
Thickness of top platform(mm)
8mm/10mm/12mm
8mm/10mm/12mm
8mm/10mm/12mm
Installation height (mm )
420mm
420mm
420mm
Load cell capacity (t)
30t
30t
30t
Accuracy grade
OIMLIII
OIMLIII
OIMLIII

Main Features

1.Adopt high-quality carbon structural steel, Q235B
2.Whole U beam is bent one time
3. U beam full automatic welding
4.Whole platform shot blast to reduce welding stress, use shot blasting machine, cast diameter 2mm steel shot to steel surface
5. No welds in the highest stress areas
6.Must do paint during 4 hours after shot blasting
7. The truck scale platform use epoxy zinc rich primer, acrylic polyurethane finish to protect from corrosion. Paint technology adopts airless spraying process to have a good adhesion
8. Full capacity calibration
Certifications
Detailed Images

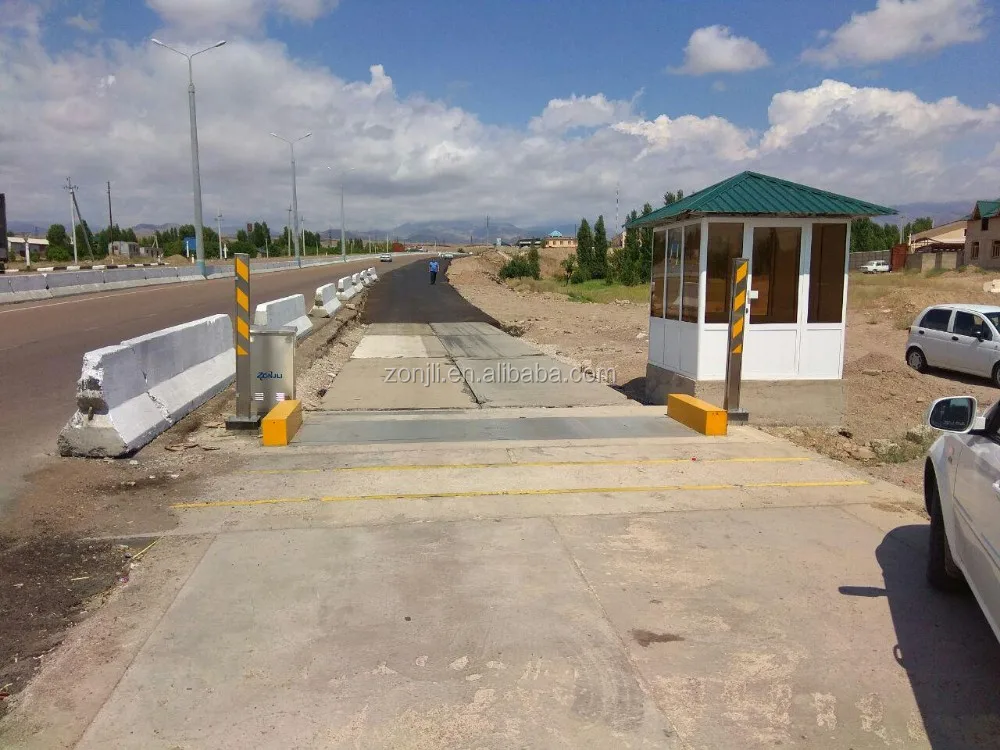

Truck Scale installed in highway station

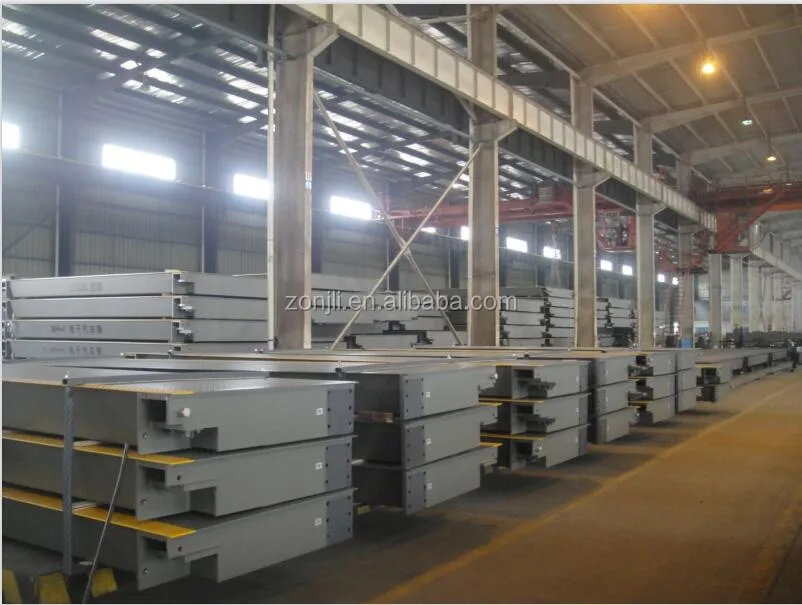

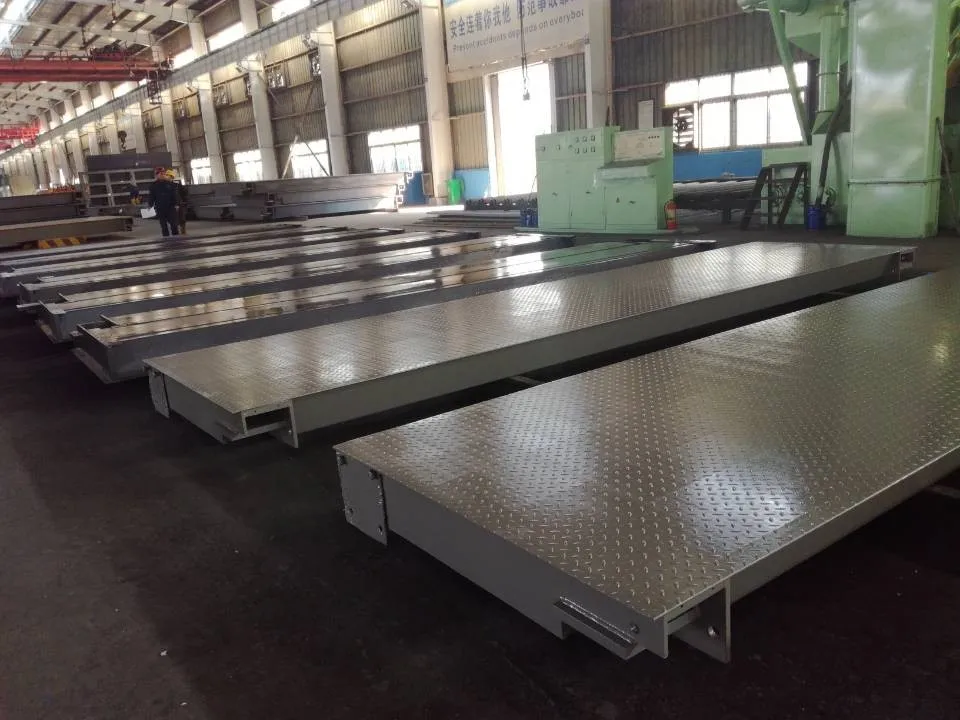

The truck scale ready to send out

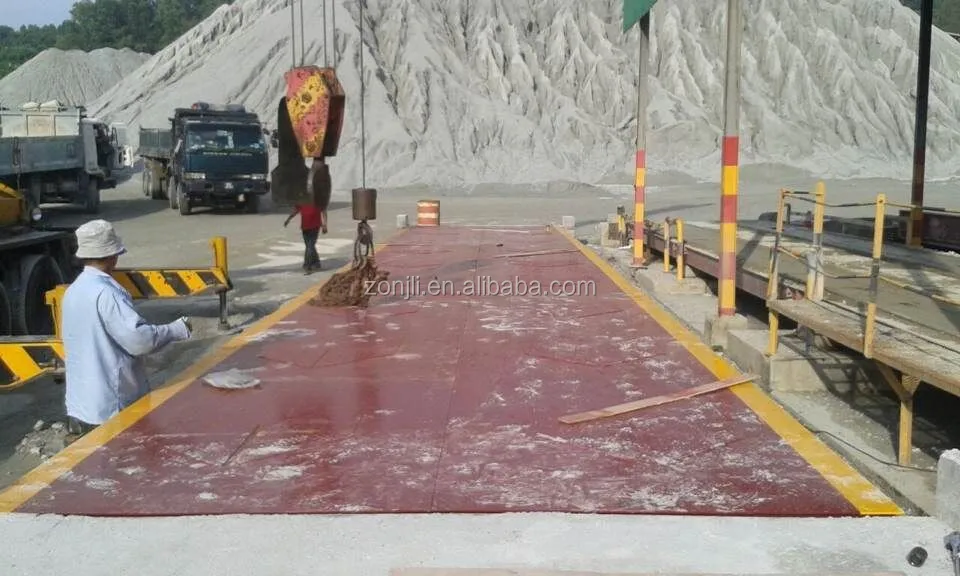

Truck scale installed in oversea market

Truck scale loaded in container


Our Service

Pit installation


Pitless installation


Packing & Delivery
Packaging
Size
1.5x5.72m
Weight
8.8 T



Packaging Details
2pcs 1.5x5.72mx1.1m
Packaging
Size
700*500*520
Weight
245KG



Packaging Details
Wooden case
